ricoh gen4 printhead 7PL

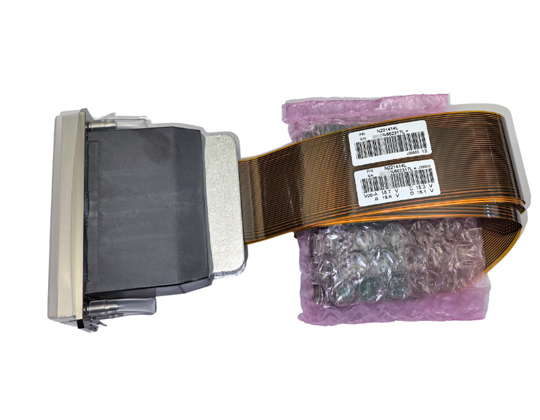

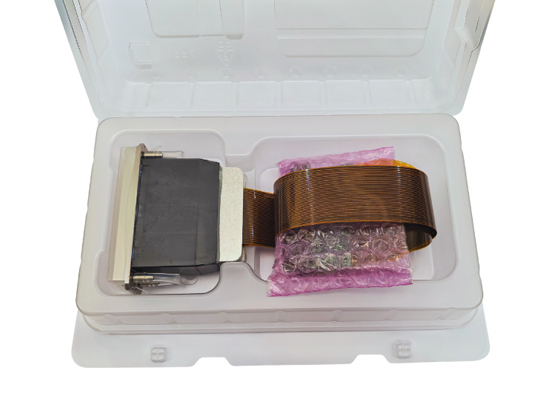

Ricoh Gen4 print head (MH2420)
7PL Printhead, 50cm Long with The Head, 42cm Long for The Cable - N220792W
7PL Printhead, 50cm Long with The Head, 42cm Long for The Cable - N220792W
Suitable printer: Mimaki UJF-3042
Technical Specifications :
Size: 63 x 63 x 16,2 mm (excluding cables)
Head Materials: SST, Ni and Epoxy Adhesive
Nozzle Plate Surface: Non-coated SST
Number of Nozzles: 2 x 192 nozzles
Nozzle Spacing: 0,1693 mm
Piezo Type: D33 Stacked PZT
Temperature Control: Integrated Heater and Thermistor
Operator Temperature range: Up to 60° C
Native Drop Volume: 7 pl
Drop Volume Range: 5-25 pl with greyscale
Jetting Frequency: Up to 30 kHZ
Life: 100 billion actuations per nozzle
